3600CD/Sqm P25 Outdoor Curtain LED Screen 2R2G2B Window Glass Led Panels

Name: 3600CDSqm P25 Outdoor Curtain LED Screen 2R2G2B Window Glass Led Panels
Brand: Minvol
Price: 1 USD

China 3600CD/Sqm P25 Outdoor Curtain LED Screen 2R2G2B Window Glass Led Panels factory

Brand Name : Minvol

Model Number : MH-G-2R2G2B-P25*100E

Certification : CE/RoHS/FCC

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200sqm/day

Delivery Time : negotiable

Packaging Details : negotiable

LED brand : Epistar

Input voltage : DC36-48V

Brightness : 3600CD/sqm

LED Color : RGB

Usage : Outdoor

Screen dimension : Can be customized

Tube chip color : Full Color

Display function : Video,animation

Contact Now

P25 High Performance Outdoor Curtain Window Glass Tv Led Panels Mesh Display Led Screen

Product description

LED outdoor advertising screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display.

Product parameters

Product Name:	P25*100 LED louver screen
Item No:	MH-G-2R2G2B-P25*0E
Light Source Brand:	Epistar
Light Source Model:	346 2R2G2B DIP
Size/Unit:	1200mm(L)*800mm(H)
Viewing Angle:	H120°/V60°
Power(W)/㎡:	150W/sqm
Average Power/㎡(W):	50W/sqm
Voltage:	DC36-48V
Pixel Pitch(mm):	25mm(H)*100mm(V)
Light Bar Size(mm):	14mm*1200mm
Resolution:	8pixel*48pixel/Unit
LED quantity/㎡(PCS):	400 pixel/sqm
Brightness(CD/㎡):	＞3600CD/sqm
Grey Scale:	65536
Refresh Rate(Hz):	＞5000Hz
Transparency:	＞88%
Weight:	4kg/sqm
Protection Grade:	IP67
Operation Temperature:	-20℃~50℃
Life Time:	≥50000 hours
Related Cert.:	CE RoHS FCC

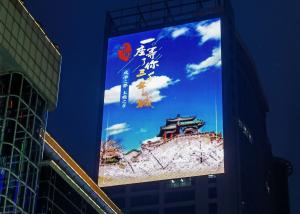

Product pictures
