Outdoor Digital Media Advertising Display Screen/Transparent Led Display Board /Grille Curtain Video Wall

Name: Outdoor Digital Media Advertising Display ScreenTransparent Led Display Board Grille Curtain Video Wall
Brand: Minvol
Price: 1 USD

China Outdoor Digital Media Advertising Display Screen/Transparent Led Display Board /Grille Curtain Video Wall factory

Brand Name : Minvol

Model Number : MH-D-1R1G1B-P25*25E

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200sqm/day

Delivery Time : negotiable

Packaging Details : negotiable

LED brand : Epistar/ Cree

Power : 150W/sqm

Color : RGB

Pixel pitch : P25*25

Screen dimension : Customized

Tube chip color : Full Color

Display function : Video,Animation

Contact Now

outdoor digital media advertising display screen/transparent led display board /Grille curtain video wall

Product description

LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED transparent screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display. it makes the project application more simple, more flexible, more efficient. lt is the best choice of indoor and outdoor display screen.

Product parameters

Product Name:	P25*25 LED transparent screen
Item No:	MH-D-1R1G1B-P25*25E
Light Source Brand:	Epistar
Light Source Model:	DIP 1R1G1B
Size/Unit:	1200mm(L)*400mm(H)
Viewing Angle:	H120°/V60°
Power(W)/㎡:	450W/sqm
Average Power/㎡(W):	150W/sqm
Voltage:	DC36-48V
Pixel Pitch(mm):	25mm(H)*25mm(V)
Light Bar Size(mm):	10.5mm*1200mm
Resolution:	16pixel*48pixel/Unit
LED quantity/㎡(PCS):	1600pixel/sqm
Brightness(CD/㎡):	＞9600CD/sqm
Grey Scale:	65536
Refresh Rate(Hz):	＞5000Hz
Transparency:	＞58%
Weight:	11kg/sqm
Protection Grade:	IP67
Operation Temperature:	-20℃~50℃
Life Time:	≥50000 hours
Related Cert.:	CE RoHS FCC

Product pictures:

Outdoor Digital Media Advertising Display Screen/Transparent Led Display Board /Grille Curtain Video Wall

Module size:

Product Installation Schematic

Outdoor Digital Media Advertising Display Screen/Transparent Led Display Board /Grille Curtain Video Wall

Control Diagram

Outdoor Digital Media Advertising Display Screen/Transparent Led Display Board /Grille Curtain Video Wall

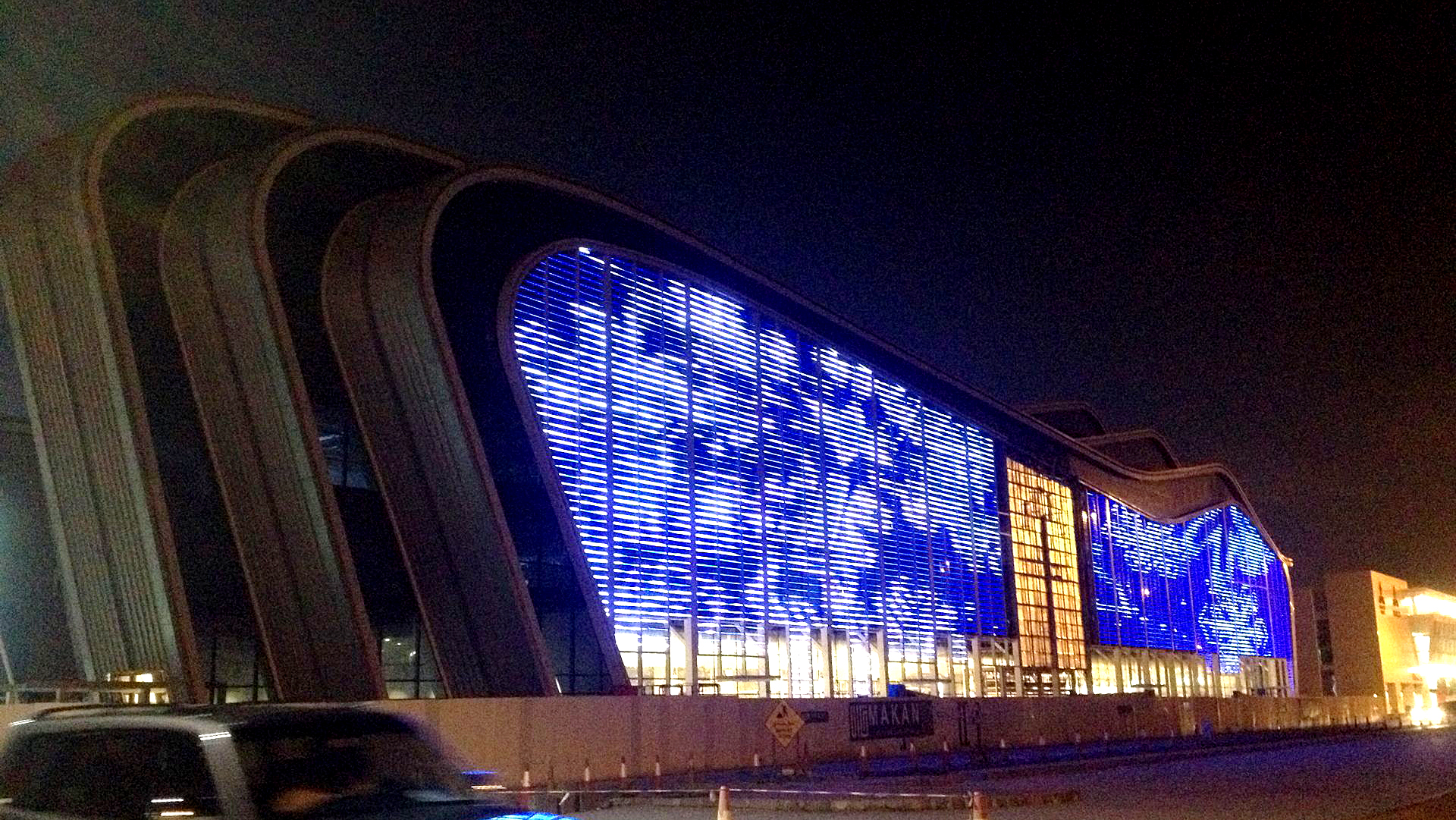

Projects pictures

Exhibition pictures
